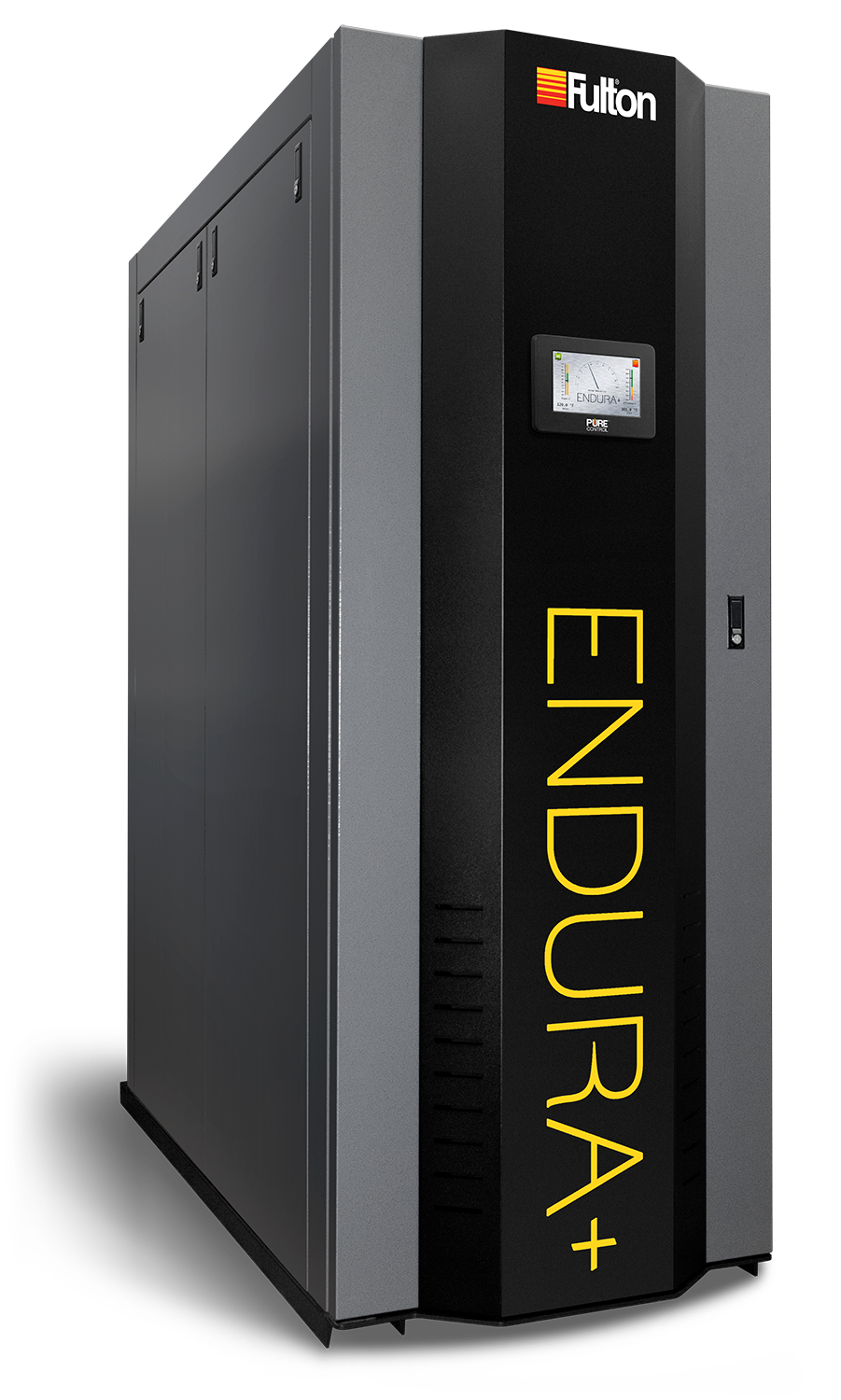

Fulton EDR+5000 ENDURA+ 5,000 MBH Condensing Firetube Boiler
Fulton EDR+5000 ENDURA+ 5,000 MBH Condensing Firetube Boiler
Regular price
$208,500.00 CAD
Regular price
Sale price
$208,500.00 CAD
Quantity
Couldn't load pickup availability
The ENDURA+ is a condensing firetube boiler for variable primary flow systems. Fulton’s patent-pending stress reliever is designed to eliminate the thermal stresses that conventional designs pass to the most critical components.
Models up to 6,000 MBH fit through a standard doorway, access panels detach in seconds, and the boiler can be supplied knocked down for retrofits. Turndown runs from 10:1 to 30:1 across the range.
| Model | EDR+5000 |
|---|---|
| Size | 5,000 MBH |
| Type | Hydronic boiler |
| Input capacity (MBH) | 5,000 |
| Water content (gal) | 180 |
| Pressure drop at 20°F ΔT (psi) | 4.1 |
| AHRI thermal efficiency (%) | 94.5 |
| Turndown ratio | 12.5:1 |
| Height (in) | 79 |
| Width (in) | 34 |
| Depth (in) | 117 |
| Operating weight (lb) | 6,588 |
| Clearance, sides (in) | 24 |
| Clearance, front (in) | 36 |
| Clearance, top (in) | 18 |
| Clearance, rear (in) | 36 |
| Fuel options | Natural gas, propane |
| Approvals shown by Fulton | AHRI, ASME, ETL, USGBC |
| Efficiency (per Fulton) | Up to 96.8% AHRI |
| Fulton lead time, as listed | 4-6 weeks |
Warranty: Warranty is administered directly by Fulton under its standard commercial terms.
