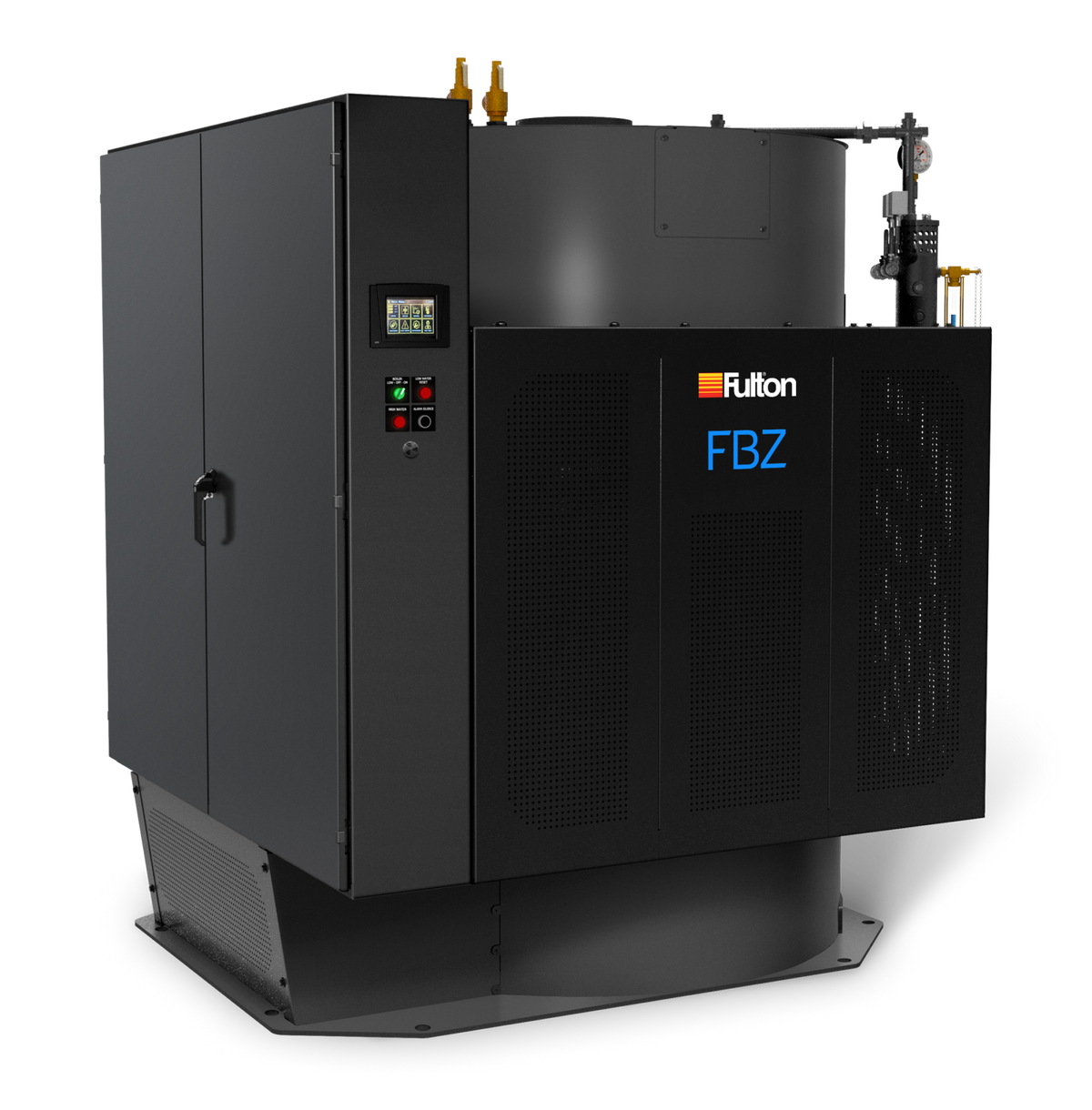

Fulton FBZ-0150 FBZ 150 kW Electric Steam Boiler
Fulton FBZ-0150 FBZ 150 kW Electric Steam Boiler
Regular price
$38,500.00 CAD
Regular price
Sale price
$38,500.00 CAD
Quantity
Couldn't load pickup availability
The FBZ is Fulton’s large electric steam boiler, from 90 to 2,000 kW, with no fossil fuel or combustion and zero scope 1 emissions at the unit. It arrives fully packaged and factory tested.
A fully insulated, thick-walled pressure vessel and a large water volume with tall steam space give high-quality dry steam. A 5.7 in colour touchscreen shows element staging, and Fulton lists 100 kA SCCR (with appropriate upstream fused disconnects) and BMS Modbus as standard.
| Model | FBZ-0150 |
|---|---|
| Size | 150 kW |
| Type | Electric steam boiler |
| Steam output (lb/hr) | 525 |
| Water content (gal) | 93 |
| Height w/o trim (in) | 75.875 |
| Width (in) | 56.75 |
| Depth (in) | 43.75 |
| Shipping weight (lb) | 1,500 |
| Operating weight (lb) | 2,125 |
| Element pull clearance (in) | 36 |
| Current at 480 V / 60 Hz / 3 ph (A) | 182 |
| Current at 600 V / 60 Hz / 3 ph (A) | 146 |
| Fuel options | Electric |
| Approvals shown by Fulton | ASME, ETL |
| Efficiency (per Fulton) | Nearly 100% |
| Fulton lead time, as listed | Varies, consult factory |
Warranty: Warranty is administered directly by Fulton under its standard commercial terms.
