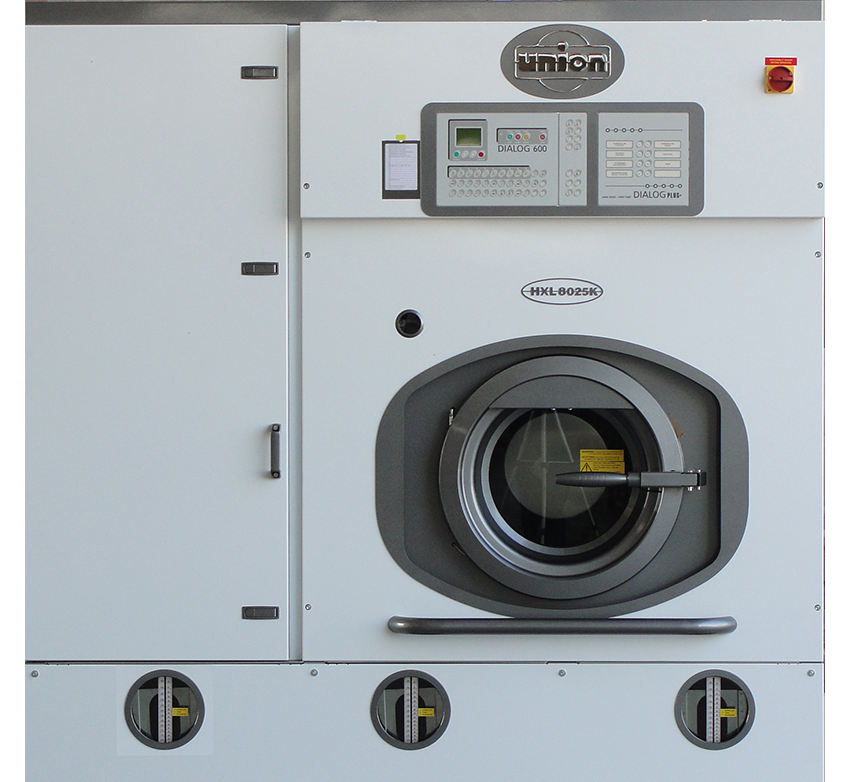

The K series is built for continuous distillation, which is the answer when the plant runs long days and solvent quality has to hold from the first load to the last. Solvent is regenerated through the day instead of drifting and being corrected afterwards.
Distillation can be steam fed, or the machine can be supplied with a built-in mini boiler as an option. For a plant without a house boiler that option is the difference between viable and not.
The series also reduces occupied floor space relative to the throughput it delivers, which matters more in a retail plant paying commercial rent than in a wholesale building.
| Load capacity | 55–60 lb (25 kg) |
|---|---|
| Distillation | Continuous — steam or mini boiler |
| Solvent tanks | Two or three, round bottom |
| Sight glass | Large, front facing |
| Control | Dialog computer with Dialog Plus |
| Drying | Electronic drying control system |
| Diagnostics | I-Connect optional |
| Certification | Confirm CSA / cETL listing and provincial solvent handling requirements |
Warranty: Warranty is administered directly by the manufacturer under their standard commercial terms. Registration details ship with the machine.
