Fulton

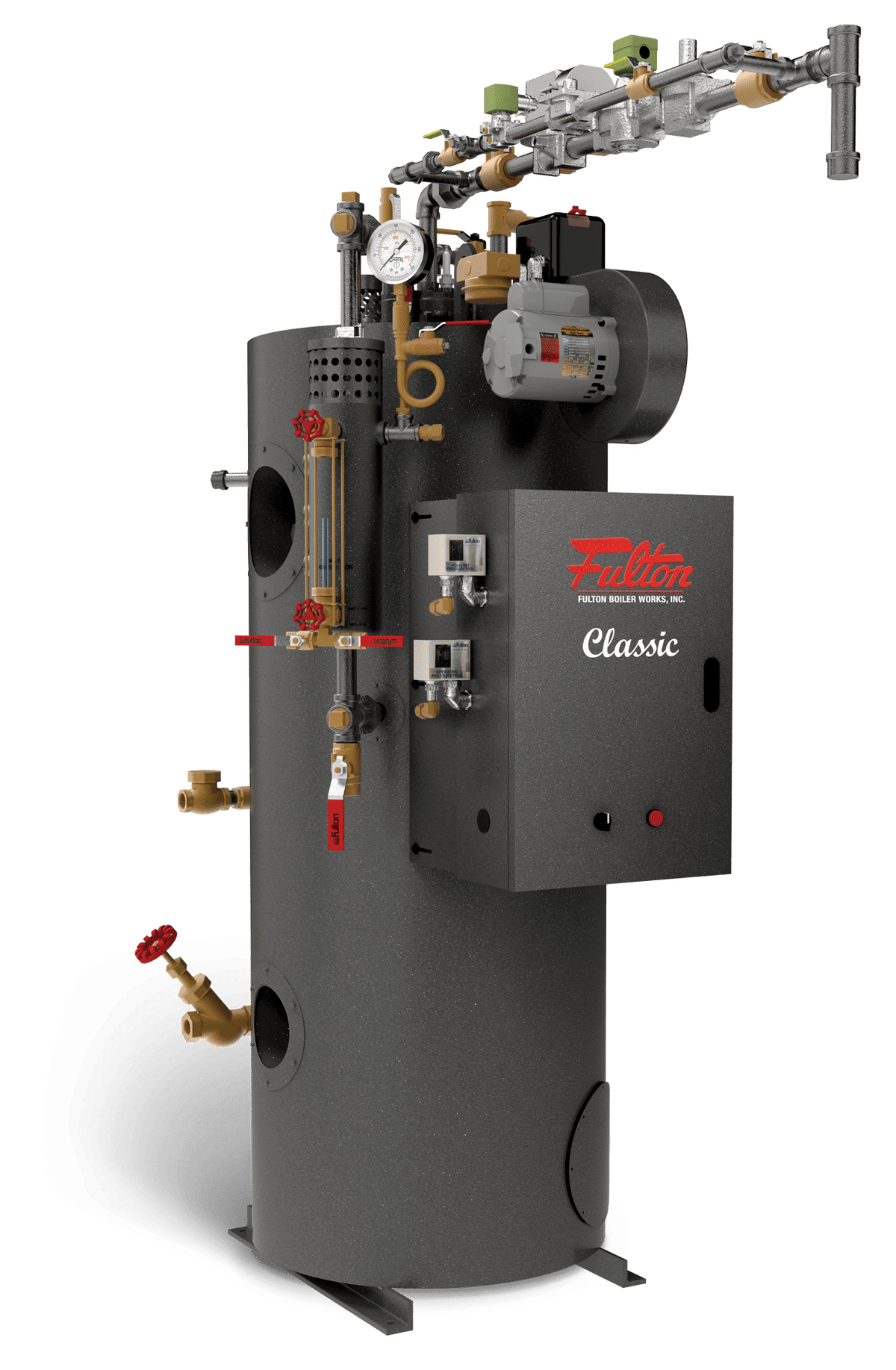

Fulton ICS-06 Classic 6 BHP Steam Boiler, ICS series
Fulton ICS-06 Classic 6 BHP Steam Boiler, ICS series
Regular price
$27,500.00 CAD
Regular price
Sale price
$27,500.00 CAD
Quantity
Couldn't load pickup availability
The Classic is the evolution of Fulton’s original vertical tubeless boiler. Fulton reports more than 100,000 installed worldwide, in compact, trouble-free steam plants for virtually every type of industry.
High-velocity flue gases travel over a cylindrical grid of heat-convection fins, which adds heat-transfer surface and raises efficiency to as much as 84% inside a rugged pressure vessel. Burners are packaged and trimmed for your application, with a low-emissions option on gas.
| Model | ICS-06 |
|---|---|
| Size | 6 BHP |
| Type | Steam boiler |
| Height w/o trim (in) | 68 |
| Height w/ trim (in) | 74 |
| Width w/ trim (in) | 35.5 |
| Depth w/ trim (in) | 44 |
| Burner pull (in) | 82 |
| Flue outlet (in) | 6 |
| Shipping weight (lb) | 1,780 |
| Clearance, sides (in) | 24 |
| Clearance, front (in) | 36 |
| Clearance, rear (in) | 24 |
| Fuel options | Natural gas, dual fuel, propane, #2 fuel oil, bio-fuel |
| Approvals shown by Fulton | ASME, UL, SCAQMD |
| Efficiency (per Fulton) | Up to 84% |
| Fulton lead time, as listed | 4-6 weeks |
Warranty: Warranty is administered directly by Fulton under its standard commercial terms.
