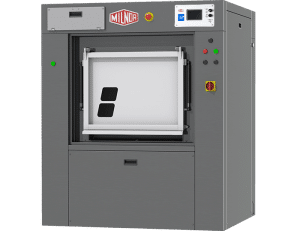

Milnor MWB27 60 lb Aseptic Barrier Washer-Extractor
Milnor MWB27 60 lb Aseptic Barrier Washer-Extractor
Couldn't load pickup availability
A barrier washer is built into a partition wall. Soiled linen loads on one side, the clean side unloads on the other, and door safety interlocks plus positive and negative air pressure stop contaminants migrating between the two. The clean side never sees the soiled side.
The MilTouch-EX control gives full access to machine function at every level and, critically for an accredited facility, logs are retrievable for review. When an inspector asks for evidence that isolation linen ran the correct thermal disinfection cycle, the machine produces it.
The long pole on a barrier install is almost never the machine. Framing and sealing the wall opening usually takes longer than the equipment lead time, so rough-in drawings are supplied free before you order and your contractor can start immediately.
| Rated capacity | 60 lb (26 kg) |
|---|---|
| Configuration | Single-pocket aseptic barrier, pass-through |
| Doors | Two — soiled and clean side, safety interlocked |
| Air management | Positive / negative pressure separation |
| Control | MilTouch-EX touchscreen |
| Cycle logging | Retrievable for audit |
| Model designation | MWB26Z |
| Suspension | Suspended |
| Cylinder diameter | 31.5 in (800 mm) |
| Cylinder volume | 9 cu ft (255 L) |
| Wash speed | 915 rpm |
| Extraction | 375 G |
| Drive motor | 5.7 HP (4.25 kW) |
| Net weight | 1,687 lb (765 kg) |
| Footprint | 49.2 x 43.3 x 58.8 in (W x D x H) |
| Drain valve | 3 in (76 mm) |
| Certification | Confirm CSA / cETL listing for the Canadian market |
Warranty: Warranty is administered directly by the manufacturer under their standard commercial terms. Registration details ship with the machine.
