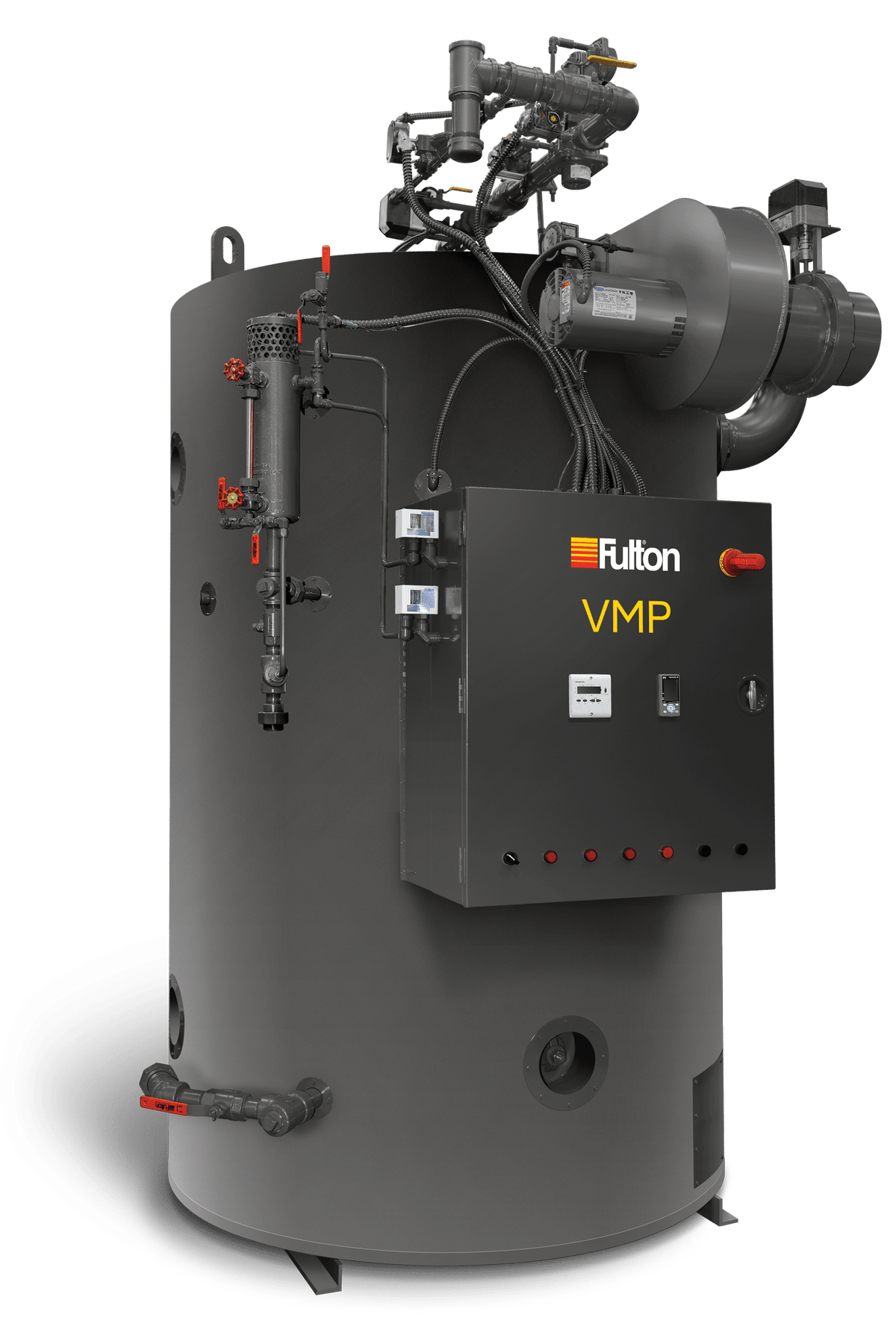

Fulton VMP-80 VMP 80 BHP Steam Boiler
Fulton VMP-80 VMP 80 BHP Steam Boiler
Regular price
$143,500.00 CAD
Regular price
Sale price
$143,500.00 CAD
Quantity
Couldn't load pickup availability
The VMP (Vertical Multi-Port) is built for heavy-duty steam duty, with a pressure vessel 30% thicker than ASME requires and heavy-walled schedule 80 flue pipes.
Fulton lists fuel-to-steam efficiency up to 84%, steam quality above 99% and linkageless controls with turndown up to 8:1. The tubeless design has no tubes to replace and a compact vertical footprint.
| Model | VMP-80 |
|---|---|
| Size | 80 BHP |
| Type | Steam boiler |
| Fuel input, natural gas (CFH) | 3,188 |
| Fuel input, propane (CFH) | 1,275 |
| Fuel input, #2 oil (CFH) | 22.8 |
| Steam output (lb/hr) | 2,760 |
| Output (MBH) | 2,678 |
| Water content, operating (gal) | 348 |
| Height w/o trim (in) | 109 |
| Height w/ trim (in) | 121 |
| Width w/o trim (in) | 66 |
| Width w/ trim (in) | 97 |
| Depth (in) | 113 |
| Burner pull (in) | 130 |
| Steam outlet, 150 psi trim (in) | 4 |
| Flue outlet (in) | 14 |
| Shipping weight (lb) | 9,425 |
| Operating weight (lb) | 12,335 |
| Fuel options | Natural gas, dual fuel, propane, #2 fuel oil, bio-fuel |
| Approvals shown by Fulton | ASME, UL |
| Efficiency (per Fulton) | Up to 84% |
| Fulton lead time, as listed | Varies, consult factory |
Warranty: Warranty is administered directly by Fulton under its standard commercial terms.
