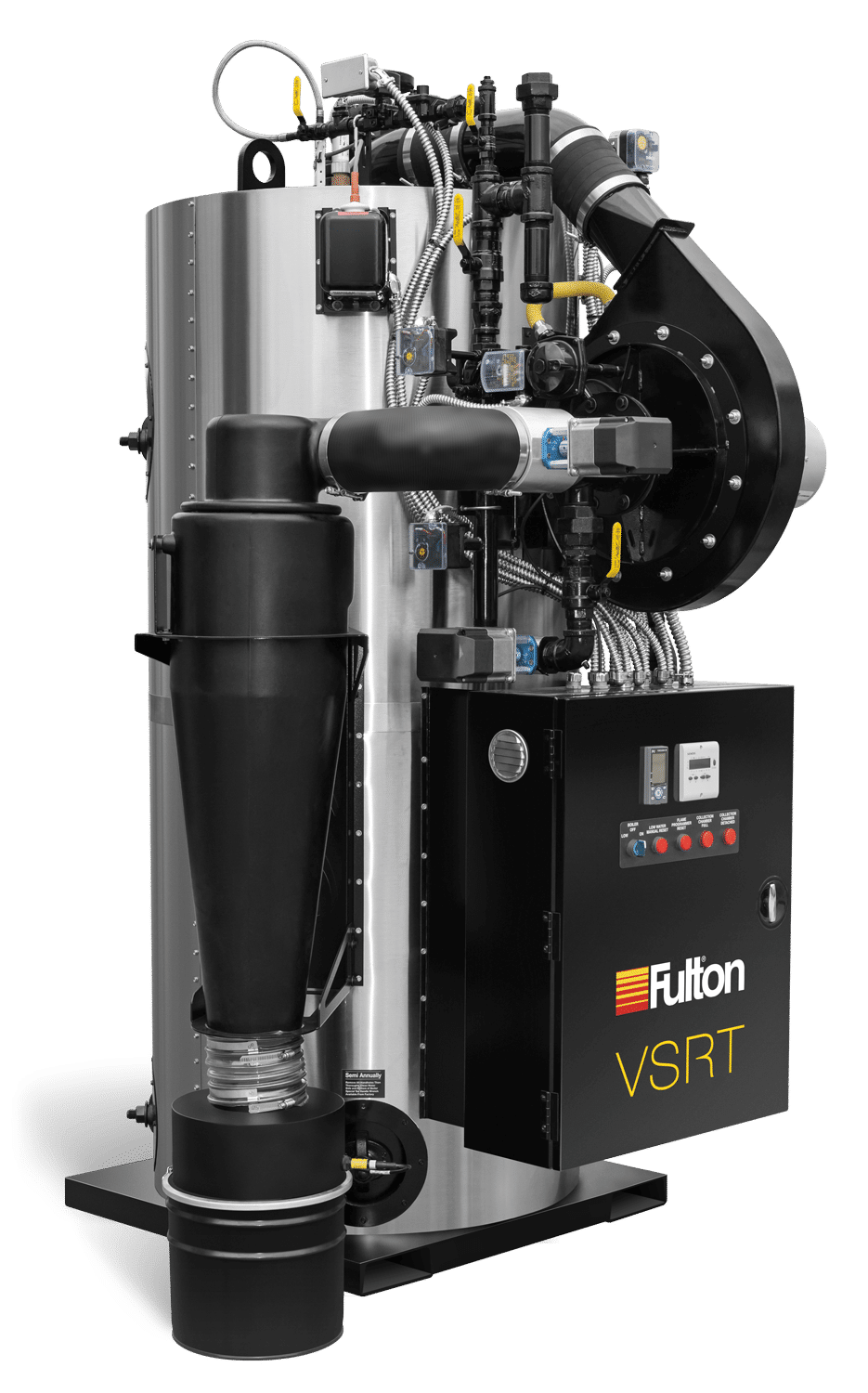

Introduced in 2018, the VSRT (Vertical Spiral Rib Tubeless) is described by Fulton as the first fully wetted, refractory-free vertical tubeless steam boiler. Its spiral rib heat exchanger gives a long heat-transfer path in a compact space.
The fully water-backed pressure vessel is wrapped in high-density insulation for low jacket temperatures and minimal thermal loss. Fulton lists industry-leading efficiency, high steam quality and a small footprint as the headline features.
| Model | VSRT-250 |
|---|---|
| Size | 250 BHP |
| Type | Steam boiler |
| Fuel input (MBH) | 9,800 |
| Steam output, F&A 212°F (lb/hr) | 8,625 |
| Output (MBH) | 8,370 |
| Turndown ratio | 10:1 |
| Height w/o trim (in) | 144 |
| Height w/ trim (in) | 148 |
| Width w/o trim (in) | 86 |
| Width w/ trim (in) | 101 |
| Depth (in) | 133 |
| Burner pull (in) | 148 |
| Steam outlet, 150 psi trim (in) | 6 |
| Air inlet (in) | 14 |
| Flue outlet (in) | 14 |
| Shipping weight (lb) | 23,600 |
| Operating weight (lb) | 34,894 |
| Flooded weight (lb) | 37,513 |
| Fuel options | Natural gas, dual fuel, propane |
| Approvals shown by Fulton | ASME, ETL, SCAQMD |
| Fulton lead time, as listed | Varies, consult factory |
Warranty: Warranty is administered directly by Fulton under its standard commercial terms.
